Explore structural mechanics, load distribution, tension vs. compression, and micro-truss efficiency! The Toothpick Bridge Truss Load Challenge (ENG04) challenges middle school student teams to act as civil engineers, designing a lightweight, high-strength toothpick truss bridge to span a 20 cm gap and carry maximum load weight.

Students explore tension, compression, structural geometry (triangles vs. rectangles), Howe/Pratt/Warren truss patterns, joint gusset mechanics, and structural efficiency math!

? WHAT IS INCLUDED IN THIS 3-PAGE PACKET?

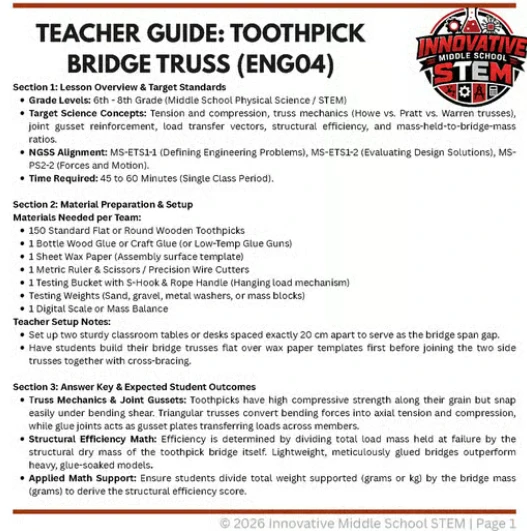

• ? Page 1: Teacher Guide & Lesson Plan: NGSS alignment (MS-ETS1-1, MS-ETS1-2, MS-PS2-2), target science concepts, and span setup guide. Expected student outcomes, answer keys, and load bucket testing safety tips.

• ? Page 2: Student Mission Card & Blueprint: Real-world civil engineering and micro-structural infrastructure scenario hook. Clear material limits box (150 toothpicks, glue, wax paper, metric ruler, digital balance). Dedicated Toothpick Truss Geometry & Vector Schematic sketching zone.

• ? Page 3: Testing Log & Scientific Reflection: Structured Data Testing Table (unloaded bridge mass g, maximum load held g/kg, structural failure modes). Applied Math Connection (calculate Structural Efficiency Ratios). Physics reflection questions.

? CORE STEM SKILLS COVERED:

• Civil & Structural Engineering, Highway Bridge Mechanics

• Tension and Compression Vector Analysis, Micro-Truss Rigidity

• Data Logging, Precision Mass Measurement (g/kg), and Ratio Calculations

• Failure Mode Analysis and Structural Efficiency Optimization

? WHY TEACHERS LOVE THIS RESOURCE:

• 3-Page Professional Layout: Includes a complete Teacher Guide for seamless prep, keeping student lab sheets clean and ready to print!

• Low-Cost Materials: Uses simple toothpicks, craft glue, wax paper, a bucket, and testing weights/washers.

• High-Impact Physics Lab: Turns micro-structural engineering equations into a high-stakes, competitive, and measurable destruction test!

• Format: High-resolution, print-ready PDF format (3 Pages).

Target Grades: 6th, 7th, 8th / Middle School

Subject Area: Physical Science, Physics, Civil Engineering, STEM Labs, Structural Design
